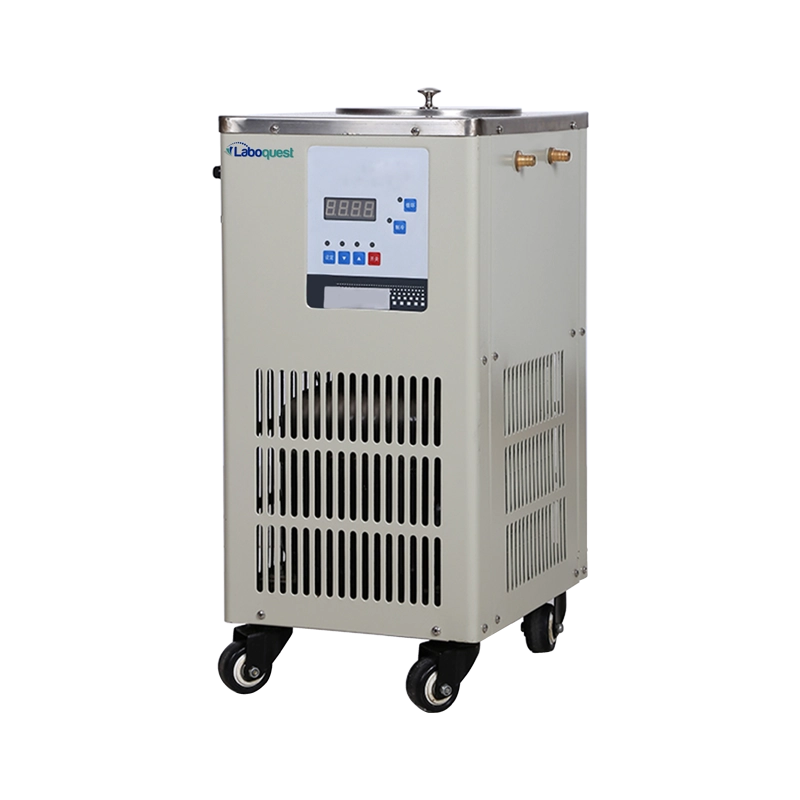

Refrigerated Circulator RCQ-1000

Refrigerated Circulator RCQ-1000 is a microprocessor controlled 5 L cryogenic circulator with a low temperature of -15°C and refrigerant capacity of 1328 W to 319 W. Features an air-cooled and hermetically sealed compressor with faster cooling speed for increased working efficiency. Adjustable flow of circulating pump for suiting according to user needs.

Volume 5 L
Minimum temperature -15 °C
Refrigerant capacity 1328 W ~ 319 W
Flow 20 L/min
Lift 4 m ~ 6 m
Temperature range -10 °C
Temperature precision ± 0.2 °C
Environment temperature 25 °C
Environment humidity 60 % ~ 80 % ( Ventilation )
Power supply 220 V 50 Hz / 60 Hz
Length 500 mm
Width 370 mm
Height 540 mm
  • Capacity – 5 L
  • Microprocessor controlled digital display
  • Digital temperature readout
  • 50 % rise in evaporation rate of plate type refrigerators
  • Air cooled and hermetically compressed units
  • Circulating pump flow (Adjustable / Customizable)

Used in sample material testing , preparation , calibration , clinical chemistry and analytics, external temperature control applications for measuring cells, photometers, refractometers, polarimeters, viscometers, metrology, etc.
